Get started with `epipredict`

Introduction

At a high level, the goal of epipredict is to make it easy to run simple machine learning and statistical forecasters for epidemiological data. To do this, we have extended the tidymodels framework to handle the case of panel time-series data.

Our hope is that it is easy for users with epidemiological training and some statistical knowledge to fit baseline models, while also allowing those with more nuanced statistical understanding to create complex custom models using the same framework. Towards that end, epipredict provides two main classes of tools:

Canned forecasters

A set of basic, easy-to-use “canned” forecasters that work out of the box. We currently provide the following basic forecasters:

flatline_forecaster(): predicts as the median the most recently seen value with increasingly wide quantiles.
climatological_forecaster(): predicts the median and quantiles based on the historical values around the same date in previous years.
arx_forecaster(): an AutoRegressive eXogenous feature forecaster, which fits a model (e.g. linear regression) on lagged data to predict quantiles for continuous values.
arx_classifier(): fits a model (e.g. logistic regression) on lagged data to predict a binned version of the growth rate.
cdc_baseline_forecaster(): a variant of the flatline forecaster that is used as a baseline in the CDC’s FluSight forecasting competition.

Forecasting framework

A framework for creating custom forecasters out of modular components, from which the canned forecasters were created. There are three types of components:

Preprocessor: transform the data before model training, such as converting counts to rates, creating smoothed columns, or any {recipes} step
Trainer: train a model on data, resulting in a fitted model object. Examples include linear regression, quantile regression, or any {parsnip} engine.
Postprocessor: unique to epipredict; used to transform the predictions after the model has been fit, such as
- generating quantiles from purely point-prediction models,
- reverting operations done in the steps, such as converting from rates back to counts
- generally adapting the format of the prediction to its eventual use.

The rest of this “Get Started” vignette will focus on using and modifying the canned forecasters. Check out the Custom Epiworkflows vignette for examples of using the forecaster framework to make more complex, custom forecasters.

If you are interested in time series in a non-panel data context, you may also want to look at timetk and modeltime for some related techniques.

For a more in-depth treatment with some practical applications, see also the Forecasting Book.

Panel forecasting basics

This section gives basic usage examples for the package beyond the most basic usage of arx_forecaster() for forecasting a single ahead using the default engine.

Example data

The forecasting methods in this package are designed to work with panel time series data in epi_df format as made available in the epiprocess package. An epi_df is a collection of one or more time-series indexed by one or more categorical variables. The {epidatasets} package makes several pre-compiled example datasets available. Let’s look at an example epi_df:

covid_case_death_rates
#> An `epi_df` object, 20,496 x 4 with metadata:
#> * geo_type  = state
#> * time_type = day
#> * as_of     = 2023-03-10
#>
#> # A tibble: 20,496 × 4
#>   geo_value time_value case_rate death_rate
#> * <chr>     <date>         <dbl>      <dbl>
#> 1 ak        2020-12-31      35.9      0.158
#> 2 al        2020-12-31      65.1      0.438
#> 3 ar        2020-12-31      66.0      1.27
#> 4 as        2020-12-31       0        0
#> 5 az        2020-12-31      76.8      1.10
#> 6 ca        2020-12-31      95.9      0.755
#> # ℹ 20,490 more rows

An epi_df always has a geo_value and a time_value as keys, along with some number of value columns, in this case case_rate and death_rate. Each of these has an associated geo_type (state) and time_type (day), for which there are some utilities. While this geo_value and time_value are the minimal set of keys, the functions of epiprocess and epipredict are designed to accommodate other key values, such as age, ethnicity, or other demographic information. For example, grad_employ_subset from epidatasets also has both age_group and edu_qual as additional keys:

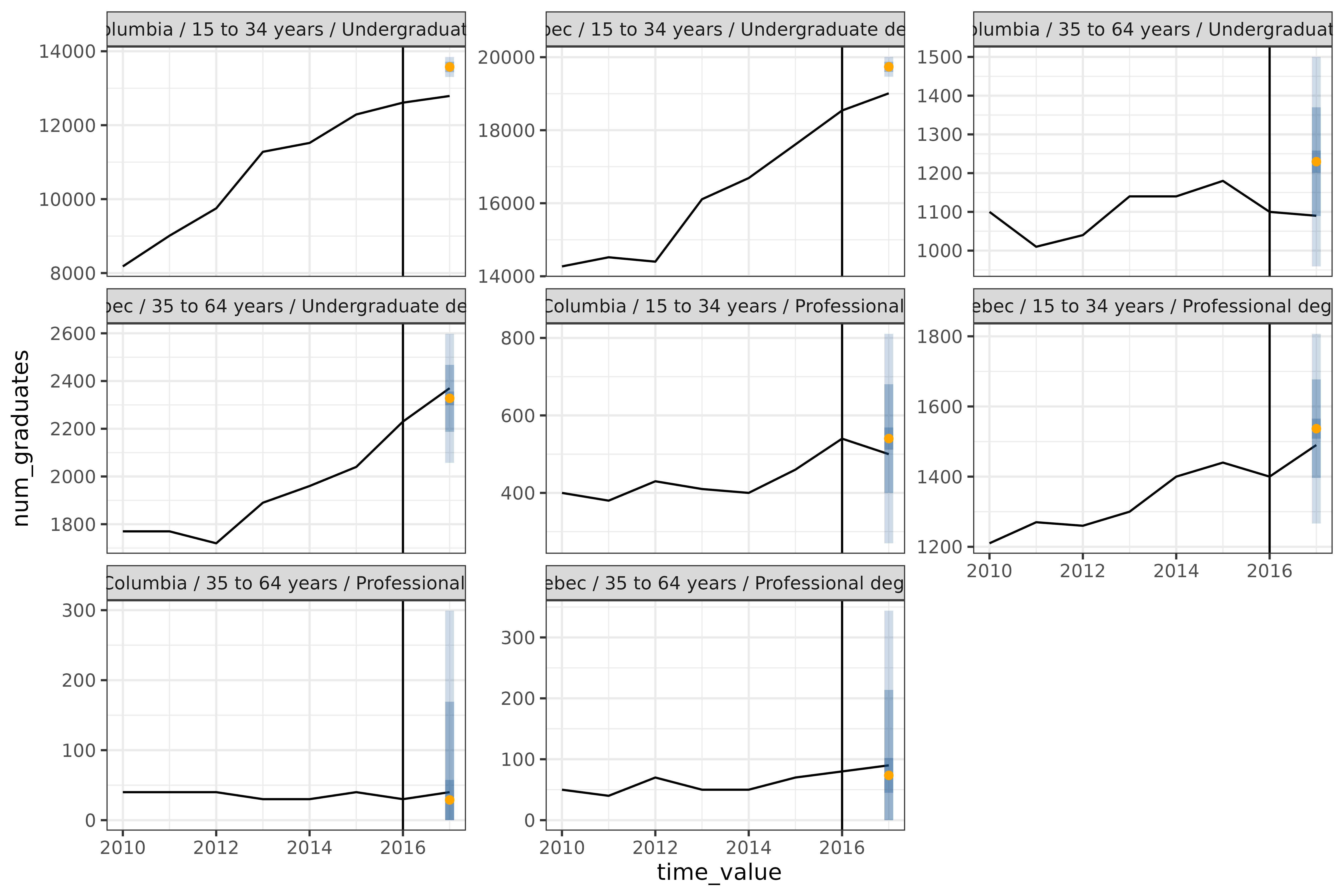

grad_employ_subset
#> An `epi_df` object, 1,445 x 7 with metadata:
#> * geo_type  = custom
#> * time_type = integer
#> * other_keys = age_group, edu_qual
#> * as_of     = 2024-09-18
#>
#> # A tibble: 1,445 × 7
#>   geo_value           age_group      edu_qual        time_value num_graduates
#> * <chr>               <fct>          <fct>                <int>         <dbl>
#> 1 Newfoundland and L… 15 to 34 years Career, techni…       2010           430
#> 2 Newfoundland and L… 35 to 64 years Career, techni…       2010           140
#> 3 Newfoundland and L… 15 to 34 years Career, techni…       2010           630
#> 4 Newfoundland and L… 35 to 64 years Career, techni…       2010           140
#> 5 Newfoundland and L… 15 to 34 years Other career, …       2010            60
#> 6 Newfoundland and L… 35 to 64 years Other career, …       2010            40
#> # ℹ 1,439 more rows
#> # ℹ 2 more variables: med_income_2y <dbl>, med_income_5y <dbl>

See epiprocess for more details on the epi_df format.

Panel time series are ubiquitous in epidemiology, but are also common in economics, psychology, sociology, and many other areas. While this package was designed with epidemiology in mind, many of the techniques are more broadly applicable.

Customizing `arx_forecaster()`

Let’s expand on the basic example presented on the landing page, starting with adjusting some parameters in arx_forecaster().

The trainer argument allows us to set the fitting engine. We can use either one of the relevant parsnip models, or one of the included engines, such as smooth_quantile_reg():

two_week_ahead <- arx_forecaster(
  covid_case_death_rates |> filter(time_value <= forecast_date),
  outcome = "death_rate",
  trainer = quantile_reg(),
  predictors = c("death_rate"),
  args_list = arx_args_list(
    lags = list(c(0, 7, 14)),
    ahead = 14
  )
)
hardhat::extract_fit_engine(two_week_ahead$epi_workflow)
#> Call:
#> quantreg::rq(formula = ..y ~ ., tau = ~c(0.05, 0.1, 0.25, 0.5,
#> 0.75, 0.9, 0.95), data = data, na.action = stats::na.omit, method = ~"br",
#>     model = FALSE)
#>
#> Coefficients:
#>                      tau= 0.05  tau= 0.10 tau= 0.25  tau= 0.50  tau= 0.75
#> (Intercept)       -0.004873168 0.00000000 0.0000000 0.01867752 0.03708118
#> lag_0_death_rate   0.084091001 0.15180503 0.3076742 0.51165423 0.59058733
#> lag_7_death_rate   0.049478502 0.08493916 0.1232253 0.10018481 0.18480536
#> lag_14_death_rate  0.072304151 0.08554334 0.0712085 0.04088075 0.02609046
#>                    tau= 0.90 tau= 0.95
#> (Intercept)       0.07234641 0.1092061
#> lag_0_death_rate  0.59001978 0.5249616
#> lag_7_death_rate  0.33236190 0.4250353
#> lag_14_death_rate 0.03695928 0.1783820
#>
#> Degrees of freedom: 10416 total; 10412 residual

The default trainer is parsnip::linear_reg(), which generates quantiles after the fact in the post-processing layers, rather than as part of the model. While these post-processing layers will produce prediction intervals for an arbitrary trainer, it is generally preferable to use quantile_reg() (or an alternative that produces statistically justifiable prediction intervals), as the quantiles generated in post-processing can be poorly behaved. quantile_reg() on the other hand directly estimates a different linear model for each quantile, reflected in the several different columns for tau above.

Because of the flexibility of parsnip, there are a whole host of models available to us¹; as an example, we could have just as easily substituted a non-linear random forest model from ranger:

two_week_ahead <- arx_forecaster(
  covid_case_death_rates |> filter(time_value <= forecast_date),
  outcome = "death_rate",
  trainer = rand_forest(mode = "regression"),
  predictors = c("death_rate"),
  args_list = arx_args_list(
    lags = list(c(0, 7, 14)),
    ahead = 14
  )
)

Other customization is possible via args_list = arx_args_list(); for example, if we wanted to increase the number of quantiles fit:

two_week_ahead <- arx_forecaster(
  covid_case_death_rates |>
    filter(time_value <= forecast_date, geo_value %in% used_locations),
  outcome = "death_rate",
  trainer = quantile_reg(),
  predictors = c("death_rate"),
  args_list = arx_args_list(
    lags = list(c(0, 7, 14)),
    ahead = 14,
    ############ changing quantile_levels ############
    quantile_levels = c(0.05, 0.1, 0.2, 0.3, 0.5, 0.7, 0.8, 0.9, 0.95)
    ##################################################
  )
)
hardhat::extract_fit_engine(two_week_ahead$epi_workflow)
#> Call:
#> quantreg::rq(formula = ..y ~ ., tau = ~c(0.05, 0.1, 0.2, 0.3,
#> 0.5, 0.7, 0.8, 0.9, 0.95), data = data, na.action = stats::na.omit,
#>     method = ~"br", model = FALSE)
#>
#> Coefficients:
#>                     tau= 0.05    tau= 0.10    tau= 0.20     tau= 0.30
#> (Intercept)       -0.01329758 -0.006999475 -0.003226356  0.0001366959
#> lag_0_death_rate   0.25217750  0.257695857  0.486159095  0.6986147165
#> lag_7_death_rate   0.17210286  0.212294203  0.114016289  0.0704290267
#> lag_14_death_rate  0.08880828  0.057022770  0.013800329 -0.0654254593
#>                      tau= 0.50    tau= 0.70    tau= 0.80   tau= 0.90
#> (Intercept)        0.004395352  0.008467922  0.005495554  0.01626215
#> lag_0_death_rate   0.751695727  0.767243828  0.743676651  0.60494554
#> lag_7_death_rate   0.208846644  0.347907095  0.460814061  0.61021640
#> lag_14_death_rate -0.164693162 -0.234886556 -0.236950849 -0.20670731
#>                     tau= 0.95
#> (Intercept)        0.03468154
#> lag_0_death_rate   0.59202848
#> lag_7_death_rate   0.64532803
#> lag_14_death_rate -0.18566431
#>
#> Degrees of freedom: 744 total; 740 residual

See the function documentation for arx_args_list() for more examples of the modifications available. If you want to make further modifications, you will need a custom workflow; see the Custom Epiworkflows vignette for details.

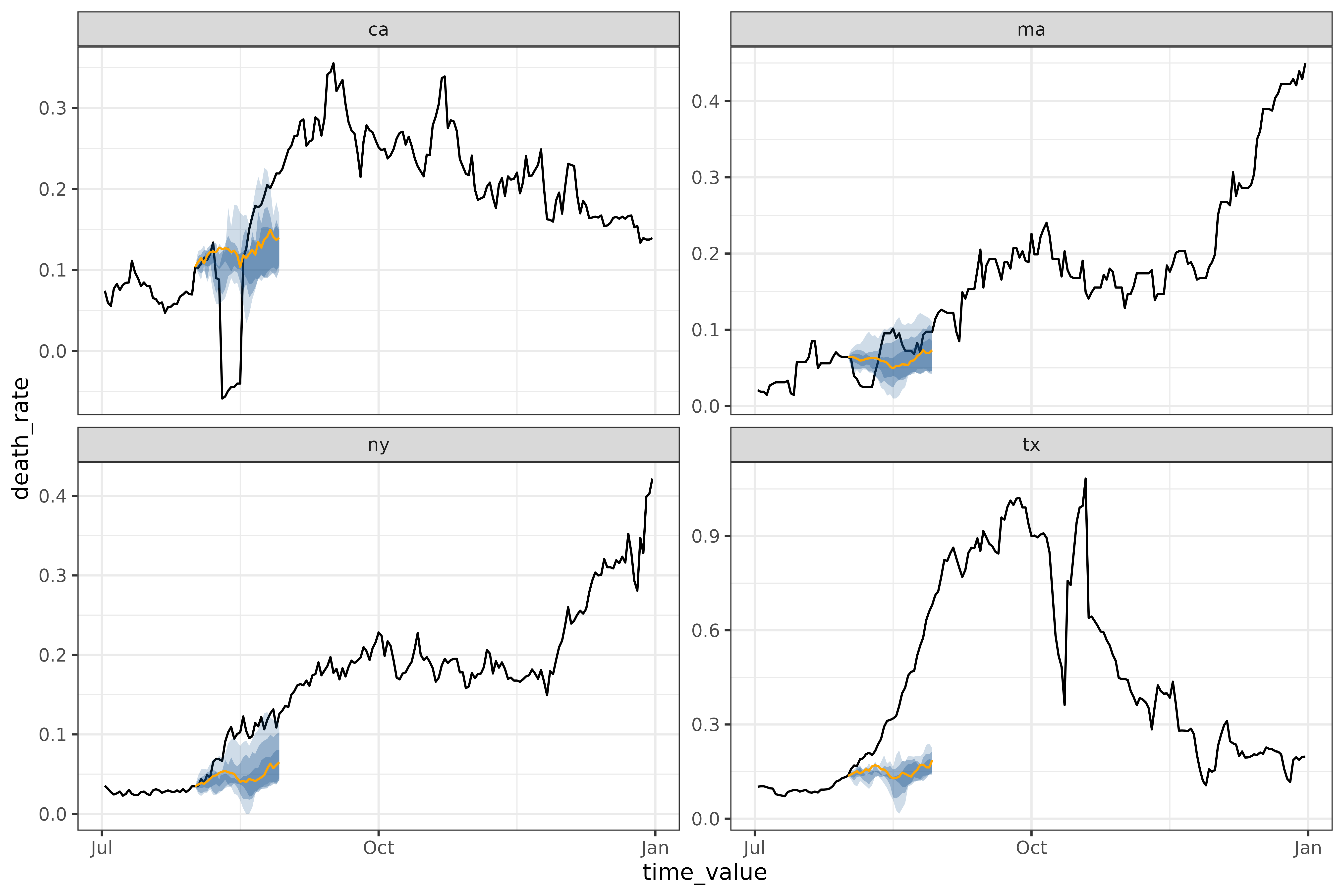

Generating multiple aheads

We often want to generate a a trajectory of forecasts over a range of dates, rather than for a single day. We can do this with arx_forecaster() by looping over aheads. For example, to predict every day over a 4-week time period:

all_canned_results <- lapply(
  seq(0, 28),
  \(days_ahead) {
    arx_forecaster(
      covid_case_death_rates |>
        filter(time_value <= forecast_date, geo_value %in% used_locations),
      outcome = "death_rate",
      predictors = c("case_rate", "death_rate"),
      trainer = quantile_reg(),
      args_list = arx_args_list(
        lags = list(c(0, 1, 2, 3, 7, 14), c(0, 7, 14)),
        ahead = days_ahead
      )
    )
  }
)
# pull out the workflow and the predictions to be able to
#  effectively use autoplot
workflow <- all_canned_results[[1]]$epi_workflow
results <- all_canned_results |>
  purrr::map(~ `$`(., "predictions")) |>
  list_rbind()
autoplot(
  object = workflow,
  predictions = results,
  observed_response = covid_case_death_rates |>
    filter(geo_value %in% used_locations, time_value > "2021-07-01")
)

Other canned forecasters

This section gives a brief example of each of the canned forecasters.

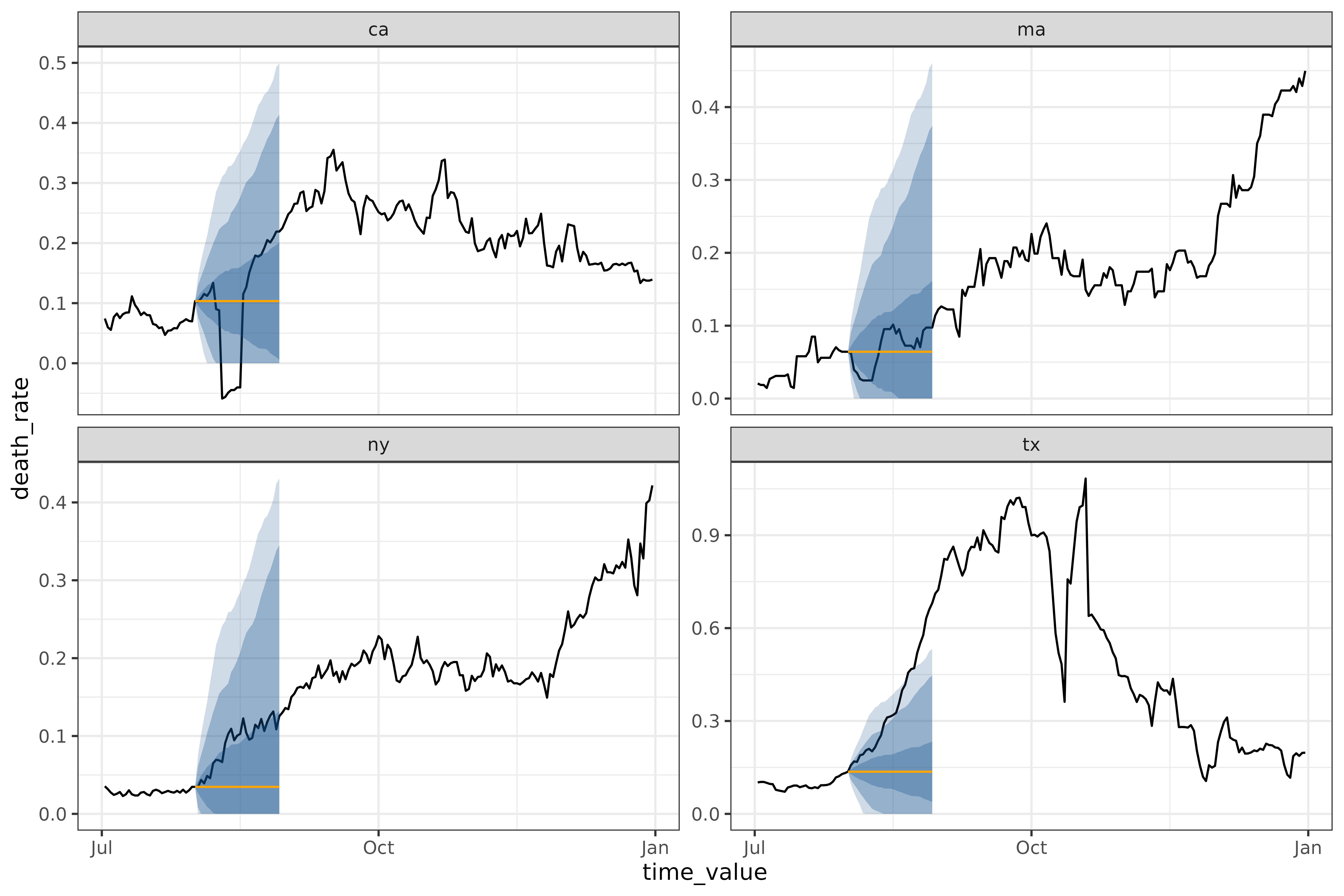

`flatline_forecaster()`

The simplest model we provide is the flatline_forecaster(), which predicts a flat line (with quantiles generated from the residuals using layer_residual_quantiles()). For example, on the same dataset as above:

all_flatlines <- lapply(
  seq(0, 28),
  \(days_ahead) {
    flatline_forecaster(
      covid_case_death_rates |>
        filter(time_value <= forecast_date, geo_value %in% used_locations),
      outcome = "death_rate",
      args_list = flatline_args_list(
        ahead = days_ahead,
      )
    )
  }
)
# same plotting code as in the arx multi-ahead case
workflow <- all_flatlines[[1]]$epi_workflow
results <- all_flatlines |>
  purrr::map(~ `$`(., "predictions")) |>
  list_rbind()
autoplot(
  object = workflow,
  predictions = results,
  observed_response = covid_case_death_rates |> filter(geo_value %in% used_locations, time_value > "2021-07-01")
)

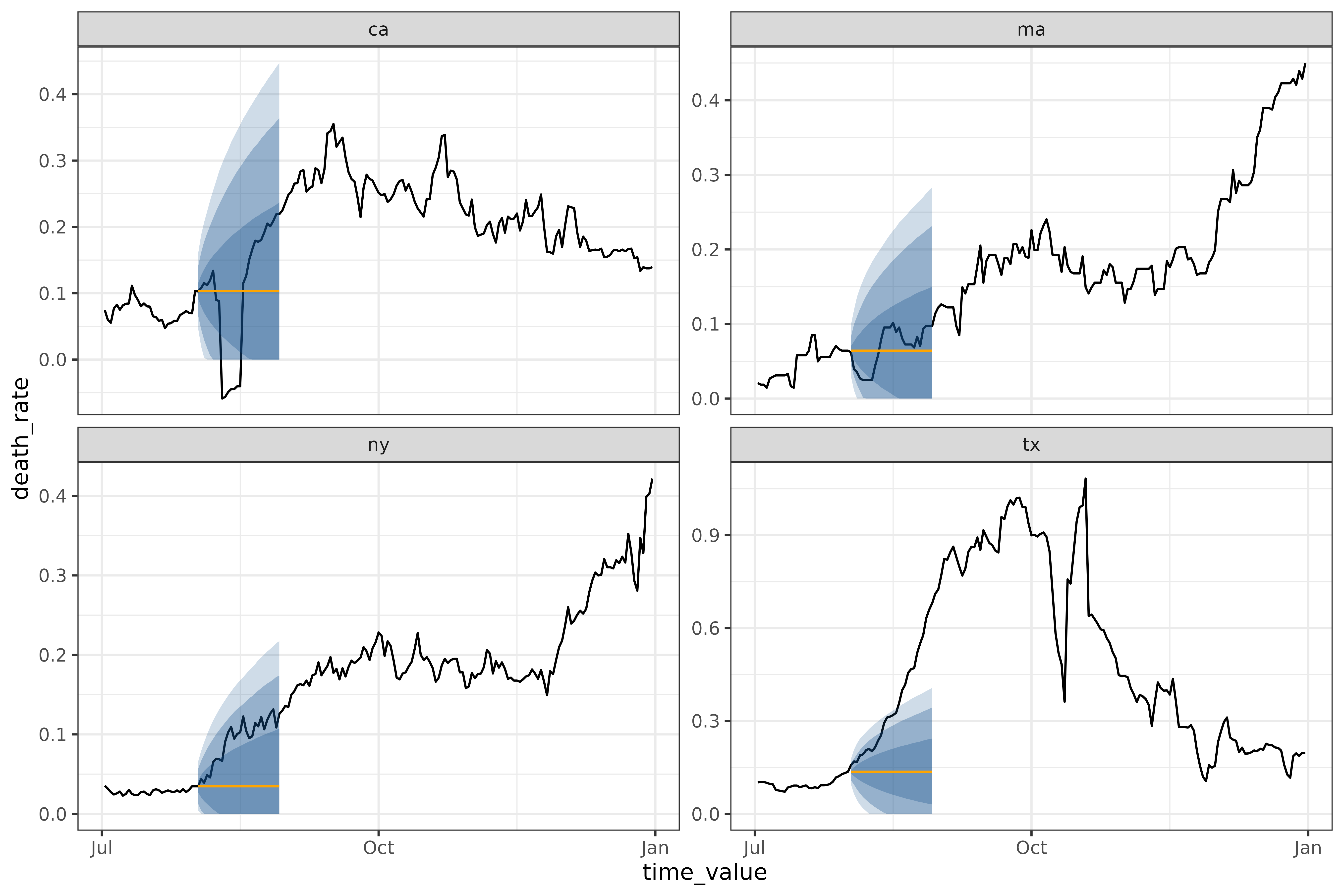

`cdc_baseline_forecaster()`

This is a different method of generating a flatline forecast, used as a baseline for the CDC COVID-19 Forecasting Hub.

all_cdc_flatline <-
  cdc_baseline_forecaster(
    covid_case_death_rates |>
      filter(time_value <= forecast_date, geo_value %in% used_locations),
    outcome = "death_rate",
    args_list = cdc_baseline_args_list(
      aheads = 1:28,
      data_frequency = "1 day"
    )
  )
# same plotting code as in the arx multi-ahead case
workflow <- all_cdc_flatline$epi_workflow
results <- all_cdc_flatline$predictions
autoplot(
  object = workflow,
  predictions = results,
  observed_response = covid_case_death_rates |> filter(geo_value %in% used_locations, time_value > "2021-07-01")
)

cdc_baseline_forecaster() and flatline_forecaster() generate medians in the same way, but cdc_baseline_forecaster()’s quantiles are generated using layer_cdc_flatline_quantiles() instead of layer_residual_quantiles(). Both quantile-generating methods use the residuals to compute quantiles, but layer_cdc_flatline_quantiles() extrapolates the quantiles by repeatedly sampling the initial quantiles to generate the next set. This results in much smoother quantiles, but ones that only capture the one-ahead uncertainty.

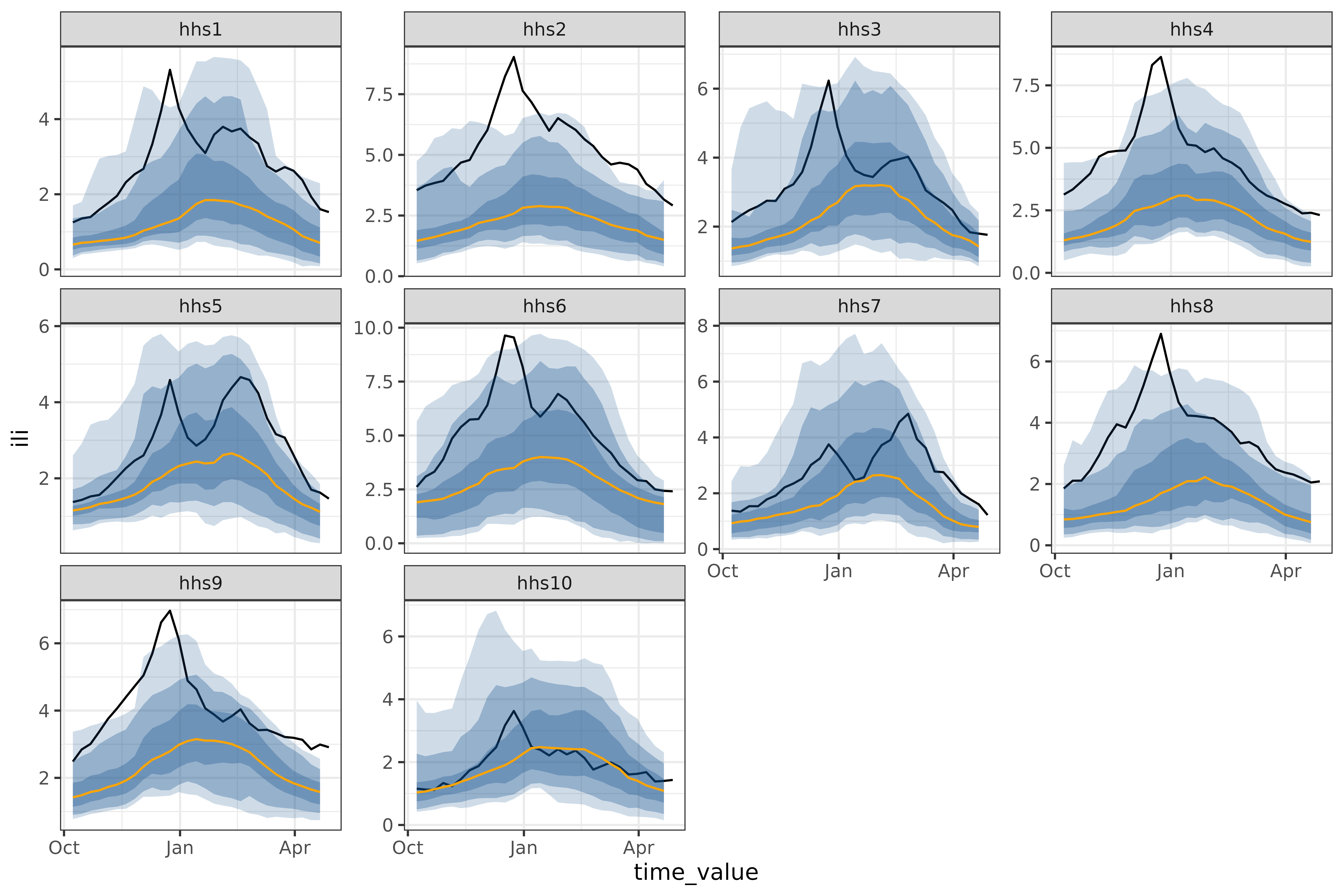

`climatological_forecaster()`

The climatological_forecaster() is a different kind of baseline. It produces a point forecast and quantiles based on the historical values for a given time of year, rather than extrapolating from recent values. Among our forecasters, it is the only one well suited for forecasts at long time horizons.

Since it requires multiple years of data and a roughly seasonal signal, the dataset we’ve been using for demonstrations so far is poor example for a climate forecast². Instead, we’ll use the fluview ILI dataset, which is weekly influenza like illness data for hhs regions, going back to 1997.

We’ll predict the 2023/24 season using all previous data, including 2020-2022, the two years where there was approximately no seasonal flu, forecasting from the start of the season, 2023-10-08:

fluview_hhs <- pub_fluview(regions = paste0("hhs", 1:10), epiweeks = epirange(100001,222201))
fluview <- fluview_hhs %>% select(geo_value = region, time_value = epiweek, issue, ili) %>% as_epi_archive() %>% epix_as_of_current()
#> inferring version column.

all_climate <- climatological_forecaster(
  fluview %>% filter(time_value < "2023-10-08"),
  outcome = "ili",
  args_list = climate_args_list(
    forecast_horizon = seq(0, 28),
    time_type = "week",
    quantile_by_key = "geo_value",
    forecast_date = as.Date("2023-10-08")
  )
)
workflow <- all_climate$epi_workflow
results <- all_climate$predictions
autoplot(
  object = workflow,
  predictions = results,
  observed_response = fluview %>% filter(time_value >= "2023-10-08", time_value < "2024-05-01") %>% mutate(geo_value = factor(geo_value, levels = paste0("hhs", 1:10)))
)

One feature of the climatological baseline is that it forecasts multiple aheads simultaneously; here we do so for the entire season of 28 weeks. This is possible for arx_forecaster(), but only using trainer = smooth_quantile_reg(), which is built to handle multiple aheads simultaneously³.

A pure climatological forecast can be thought of as forecasting a typical year so far. The 2023/24 had some regions, such as hhs10 which were quite close to the typical year, and some, such as hhs2 that were frequently outside even the 90% prediction band (the lightest shown above).

`arx_classifier()`

Unlike the other canned forecasters, arx_classifier predicts binned growth rate. The forecaster converts the raw outcome variable into a growth rate, which it then bins and predicts, using bin thresholds provided by the user. For example, on the same dataset and forecast_date as above, this model outputs:

classifier <- arx_classifier(
  covid_case_death_rates |>
    filter(geo_value %in% used_locations, time_value < forecast_date),
  outcome = "death_rate",
  predictors = c("death_rate", "case_rate"),
  trainer = multinom_reg(),
  args_list = arx_class_args_list(
    lags = list(c(0, 1, 2, 3, 7, 14), c(0, 7, 14)),
    ahead = 2 * 7,
    breaks = 0.25 / 7
  )
)
classifier$predictions
#> # A tibble: 4 × 4
#>   geo_value .pred_class   forecast_date target_date
#>   <chr>     <fct>         <date>        <date>
#> 1 ca        (-Inf,0.0357] 2021-07-31    2021-08-14
#> 2 ma        (-Inf,0.0357] 2021-07-31    2021-08-14
#> 3 ny        (-Inf,0.0357] 2021-07-31    2021-08-14
#> 4 tx        (-Inf,0.0357] 2021-07-31    2021-08-14

The number and size of the growth rate categories is controlled by breaks, which define the bin boundaries.

In this example, the custom breaks passed to arx_class_args_list() correspond to 2 bins: (-∞, 0.0357] and (0.0357, ∞). The bins can be interpreted as: the outcome variable is decreasing, approximately stable, slightly increasing, or increasing quickly.

The returned predictions assigns each state to one of the growth rate bins. In this case, the classifier expects the growth rate for all 4 of the states to fall into the same category, (-∞, 0.0357].

To see how this model performed, let’s compare to the actual growth rates for the target_date, as computed using epiprocess:

growth_rates <- covid_case_death_rates |>
  filter(geo_value %in% used_locations) |>
  group_by(geo_value) |>
  mutate(
    deaths_gr = growth_rate(x = time_value, y = death_rate)
  ) |>
  ungroup()
growth_rates |> filter(time_value == "2021-08-14")
#> An `epi_df` object, 4 x 5 with metadata:
#> * geo_type  = state
#> * time_type = day
#> * as_of     = 2023-03-10
#>
#> # A tibble: 4 × 5
#>   geo_value time_value case_rate death_rate deaths_gr
#>   <chr>     <date>         <dbl>      <dbl>     <dbl>
#> 1 ca        2021-08-14      32.1    -0.0446   -1.39
#> 2 ma        2021-08-14      16.8     0.0953    0.0633
#> 3 ny        2021-08-14      21.0     0.0946    0.0321
#> 4 tx        2021-08-14      48.4     0.311     0.0721

The accuracy is 50%, since all 4 states were predicted to be in the interval (-Inf, 0.0357], while two, ca and ny actually were.

Fitting multi-key panel data

If multiple keys are set in the epi_df as other_keys, arx_forecaster will automatically group by those in addition to the required geographic key. For example, predicting the number of graduates in each of the categories in grad_employ_subset from above:

# only fitting a subset, otherwise there are ~550 distinct pairs, which is bad for plotting
edu_quals <- c("Undergraduate degree", "Professional degree")
geo_values <- c("Quebec", "British Columbia")

grad_employ <- grad_employ_subset |>
  filter(edu_qual %in% edu_quals, geo_value %in% geo_values)

grad_employ
#> An `epi_df` object, 64 x 7 with metadata:
#> * geo_type  = custom
#> * time_type = integer
#> * other_keys = age_group, edu_qual
#> * as_of     = 2024-09-18
#>
#> # A tibble: 64 × 7
#>   geo_value        age_group      edu_qual           time_value num_graduates
#>   <chr>            <fct>          <fct>                   <int>         <dbl>
#> 1 Quebec           15 to 34 years Undergraduate deg…       2010         14270
#> 2 Quebec           35 to 64 years Undergraduate deg…       2010          1770
#> 3 Quebec           15 to 34 years Professional degr…       2010          1210
#> 4 Quebec           35 to 64 years Professional degr…       2010            50
#> 5 British Columbia 15 to 34 years Undergraduate deg…       2010          8180
#> 6 British Columbia 35 to 64 years Undergraduate deg…       2010          1100
#> # ℹ 58 more rows
#> # ℹ 2 more variables: med_income_2y <dbl>, med_income_5y <dbl>

grad_forecast <- arx_forecaster(
  grad_employ |>
    filter(time_value < 2017),
  outcome = "num_graduates",
  predictors = c("num_graduates"),
  args_list = arx_args_list(
    lags = list(c(0, 1, 2)),
    ahead = 1
  )
)
# and plotting
autoplot(
  grad_forecast$epi_workflow,
  grad_forecast$predictions,
  observed_response = grad_employ,
) + geom_vline(aes(xintercept = 2016))

The 8 graphs represent all combinations of the geo_values ("Quebec" and "British Columbia"), edu_quals ("Undergraduate degree" and "Professional degree"), and age brackets ("15 to 34 years" and "35 to 64 years").

Fitting a non-geo-pooled model

The methods shown so far fit a single model across all geographic regions. This is called “geo-pooling”. To fit a non-geo-pooled model that fits each geography separately, one either needs a multi-level engine (which at the moment parsnip doesn’t support), or one needs to loop over geographies. Here, we’re using purrr::map to perform the loop.

geo_values <- covid_case_death_rates |>
  pull(geo_value) |>
  unique()

all_fits <-
  purrr::map(geo_values, \(geo) {
    covid_case_death_rates |>
      filter(
        geo_value == geo,
        time_value <= forecast_date
      ) |>
      arx_forecaster(
        outcome = "death_rate",
        trainer = linear_reg(),
        predictors = c("death_rate"),
        args_list = arx_args_list(
          lags = list(c(0, 7, 14)),
          ahead = 14
        )
      )
  })
all_fits |>
  map(~ pluck(., "predictions")) |>
  list_rbind()
#> # A tibble: 56 × 5
#>   geo_value  .pred .pred_distn forecast_date target_date
#>   <chr>      <dbl>   <qtls(7)> <date>        <date>
#> 1 ak        0.0787    [0.0787] 2021-08-01    2021-08-15
#> 2 al        0.206      [0.206] 2021-08-01    2021-08-15
#> 3 ar        0.275      [0.275] 2021-08-01    2021-08-15
#> 4 as        0              [0] 2021-08-01    2021-08-15
#> 5 az        0.121      [0.121] 2021-08-01    2021-08-15
#> 6 ca        0.0674    [0.0674] 2021-08-01    2021-08-15
#> # ℹ 50 more rows

Fitting separate models for each geography is both 56 times slower⁴ than geo-pooling, and fits each model on far less data. If a dataset contains relatively few observations for each geography, fitting a geo-pooled model is likely to produce better, more stable results. However, geo-pooling can only be used if values are comparable in meaning and scale across geographies or can be made comparable, for example by normalization.

If we wanted to build a geo-aware model, such as a linear regression with a different intercept for each geography, we would need to build a custom workflow with geography as a factor.

Anatomy of a canned forecaster

This section describes the resulting object from arx_forecaster(), an arx_fcast object, along with a fairly minimal description of the actual mathematical model used for arx_forecaster().

Code object

Let’s dissect the forecaster we trained back on the landing page:

four_week_ahead <- arx_forecaster(
  covid_case_death_rates |> filter(time_value <= forecast_date),
  outcome = "death_rate",
  predictors = c("case_rate", "death_rate"),
  args_list = arx_args_list(
    lags = list(c(0, 1, 2, 3, 7, 14), c(0, 7, 14)),
    ahead = 4 * 7,
    quantile_levels = c(0.1, 0.25, 0.5, 0.75, 0.9)
  )
)

four_week_ahead has three components: an epi_workflow, a table of predictions, and a list of metadata. The table of predictions is a simple tibble,

four_week_ahead$predictions
#> # A tibble: 56 × 5
#>   geo_value  .pred .pred_distn forecast_date target_date
#>   <chr>      <dbl>   <qtls(5)> <date>        <date>
#> 1 ak        0.234      [0.234] 2021-08-01    2021-08-29
#> 2 al        0.290       [0.29] 2021-08-01    2021-08-29
#> 3 ar        0.482      [0.482] 2021-08-01    2021-08-29
#> 4 as        0.0190     [0.019] 2021-08-01    2021-08-29
#> 5 az        0.182      [0.182] 2021-08-01    2021-08-29
#> 6 ca        0.178      [0.178] 2021-08-01    2021-08-29
#> # ℹ 50 more rows

where .pred gives the point/median prediction, and .pred_distn is a hardhat::quantile_pred() object representing a distribution through various quantile levels. The 5 in <qtls(5)> refers to the number of quantiles that have been explicitly created, while the [0.234] is the median value⁵. By default, .pred_distn covers the quantiles c(0.05, 0.1, 0.25, 0.5, 0.75, 0.9, 0.95).

The epi_workflow is a significantly more complicated object, extending a workflows::workflow() to include post-processing steps:

four_week_ahead$epi_workflow
#>
#> ══ Epi Workflow [trained] ═══════════════════════════════════════════════════
#> Preprocessor: Recipe
#> Model: linear_reg()
#> Postprocessor: Frosting
#>
#> ── Preprocessor ─────────────────────────────────────────────────────────────
#>
#> 7 Recipe steps.
#> 1. step_epi_lag()
#> 2. step_epi_lag()
#> 3. step_epi_ahead()
#> 4. step_naomit()
#> 5. step_naomit()
#> 6. step_training_window()
#> 7. check_enough_data()
#>
#> ── Model ────────────────────────────────────────────────────────────────────
#>
#> Call:
#> stats::lm(formula = ..y ~ ., data = data)
#>
#> Coefficients:
#>       (Intercept)    lag_0_case_rate    lag_1_case_rate    lag_2_case_rate
#>         0.0190429          0.0022671         -0.0003564          0.0007037
#>   lag_3_case_rate    lag_7_case_rate   lag_14_case_rate   lag_0_death_rate
#>         0.0027288          0.0013392         -0.0002427          0.0926092
#>  lag_7_death_rate  lag_14_death_rate
#>         0.0640675          0.0347603
#>
#> ── Postprocessor ────────────────────────────────────────────────────────────
#>
#> 5 Frosting layers.
#> 1. layer_predict()
#> 2. layer_residual_quantiles()
#> 3. layer_add_forecast_date()
#> 4. layer_add_target_date()
#> 5. layer_threshold()
#>

An epi_workflow() consists of 3 parts:

preprocessor: a collection of steps that transform the data to be ready for modelling. Steps can be custom, as are those included in this package, or be defined in {recipes}. four_week_ahead has 5 steps; you can inspect them more closely by running hardhat::extract_recipe(four_week_ahead$epi_workflow).⁶
spec: a parsnip::model_spec which includes both the model parameters and an engine to fit those parameters to the training data as prepared by preprocessor. four_week_ahead uses the default of parsnip::linear_reg(), which is a parsnip wrapper for several linear regression engines, by default stats::lm(). You can inspect the model more closely by running hardhat::extract_fit_recipe(four_week_ahead$epi_workflow).
postprocessor: a collection of layers to be applied to the resulting forecast. Layers are internal to this package. four_week_ahead just so happens to have 5 of as these well. You can inspect the layers more closely by running epipredict::extract_layers(four_week_ahead$epi_workflow).

See the Custom Epiworkflows vignette for recreating and then extending four_week_ahead using the custom forecaster framework.

Mathematical description

Let’s look at the mathematical details of the model in more detail, using a minimal version of four_week_ahead:

four_week_small <- arx_forecaster(
  covid_case_death_rates |> filter(time_value <= forecast_date),
  outcome = "death_rate",
  predictors = c("case_rate", "death_rate"),
  args_list = arx_args_list(
    lags = list(c(0, 7, 14), c(0, 7, 14)),
    ahead = 4 * 7,
    quantile_levels = c(0.1, 0.25, 0.5, 0.75, 0.9)
  )
)
hardhat::extract_fit_engine(four_week_small$epi_workflow)
#>
#> Call:
#> stats::lm(formula = ..y ~ ., data = data)
#>
#> Coefficients:
#>       (Intercept)    lag_0_case_rate    lag_7_case_rate   lag_14_case_rate
#>         0.0186296          0.0041617          0.0026782         -0.0003569
#>  lag_0_death_rate   lag_7_death_rate  lag_14_death_rate
#>         0.0929132          0.0641027          0.0348096

If $d_{t,j}$ is the death rate on day $t$ at location $j$ and $c_{t,j}$ is the associated case rate, then the model we’re fitting is:

$\begin{aligned} d_{t+28, j} = & a_0 + a_1 d_{t,j} + a_2 d_{t-7,j} + a_3 d_{t-14, j} +\\ & a_4 c_{t, j} + a_5 c_{t-7, j} + a_6 c_{t-14, j} + \varepsilon_{t,j}. \end{aligned}$

For example, $a_1$ is lag_0_death_rate above, with a value of 0.093, while $a_5$ is 0.0027.

The training data for fitting this linear model is constructed within the arx_forecaster() function by shifting a series of columns the appropriate amount – based on the requested lags. Each row containing no NA values is used as a training observation to fit the coefficients $a_0,\ldots, a_6$ .
